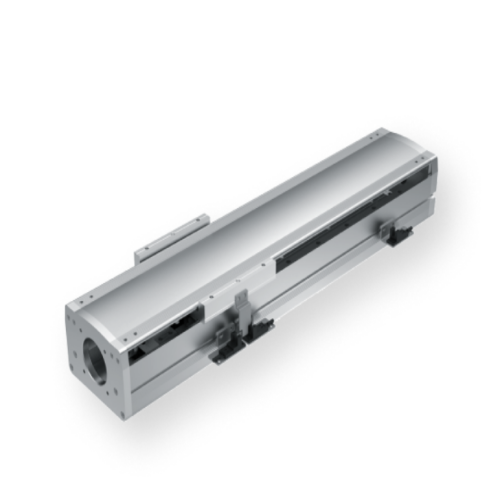

Linear Module

Linear Modules: High-Precision Linear Motion Solutions for Industrial Automation

Linear modules serve as core linear motion components in industrial automation systems. Each module integrates precision guide rails, ball screws, sliders, and protective sealing structures into a compact, ready-to-use assembly. Capable of enabling single-axis or multi-axis X/Y/Z linkage configurations, these modules deliver high-precision, highly stable linear motion at the micron level. Their operational characteristics include precise positioning accuracy, smooth motion free from stuttering or vibration, and low noise levels—making them suitable for applications where consistent performance is essential.

These modules offer several performance advantages, including high structural rigidity, excellent wear resistance, and a long service life. They are designed to adapt to diverse application requirements regarding load capacity, operational speed, and travel distance. To accommodate varied integration needs, the modules support customized designs and are perfectly compatible with both stepper and servo motor drives, allowing for flexible system configuration.

Widely deployed across a broad range of applications—including CNC machine tools, automated robotic arms, 3D printers, precision inspection instruments, medical equipment, and smart production lines—linear modules facilitate the rapid assembly of highly efficient transmission units. Their versatility enables engineers to streamline development cycles while maintaining consistent performance standards.

Featuring a compact, integrated structure, these modules offer easy installation and commissioning, reducing setup time and simplifying system integration. Additionally, their maintenance-free, sealed design significantly reduces long-term operational and maintenance costs by minimizing the need for routine lubrication and protection against contaminants. By effectively enhancing equipment operational stability and production efficiency, linear modules represent an ideal linear motion solution for the fields of precision manufacturing, automated production, inspection, and medical technology.
