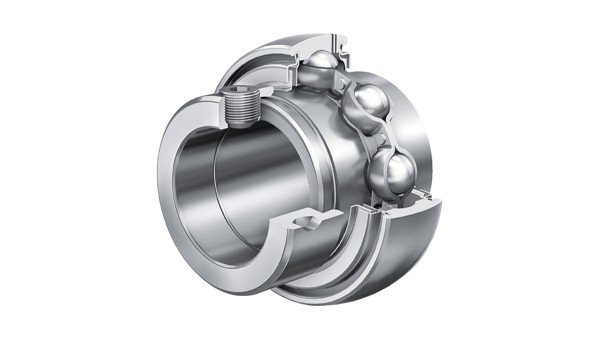

Spannlager / Insert Bearings (Y-Bearings)

What Are Spannlager?

Spannlager are also known as insert bearings or Y-bearings worldwide. They are a specialized type of sealed radial ball bearing. Engineers design them for quick, easy installation and reliable performance. They work well in a wide range of industrial applications.
They build on the popular 62 and 63 series deep-groove ball bearings. Key features include a spherical outer ring, a widened inner ring, and built-in locking mechanisms. This design makes them versatile for both light and moderate radial loads.

Core Design and Structure

At the core of their design, these bearings combine several features. These features simplify mounting and improve stability.
First, the spherical outer race allows minor misalignment between the shaft and housing. This reduces stress on the bearing and extends its life. Second, the widened inner ring provides a larger contact area with the shaft. Third, locking devices secure the bearing firmly in place. These include set screws, eccentric collars, or adapter sleeves. They require no extra machining or complex tools. Most models come pre-sealed with rubber or metal shields. The shields protect internal parts from dust, moisture, and contaminants.

Materials and Quality Control

We manufacture insert bearings to strict quality standards. We use high-grade bearing steel, such as GCr15. Each bearing goes through precision grinding, heat treatment, and thorough testing. These steps ensure consistent performance.
We check every bearing for dimensional accuracy, surface hardness, and rotational smoothness. This ensures they meet the demands of continuous operation. The combination of high-quality materials and robust sealing delivers three key benefits: low-friction rotation, reduced maintenance, and long service life. They perform well even in dusty, wet, or high-vibration conditions.

Common Applications

Insert bearings work across various industries. These include agriculture, food processing, material handling, and general machinery.
They are the preferred choice for conveyor systems, agricultural equipment, fans, blowers, and textile machinery. In these applications, easy maintenance and reliable operation are critical. When paired with pillow blocks, flanged units, or take-up housings, they form complete assemblies. These assemblies are ready for installation. They are ideal for both quick repairs and new equipment builds.

Key Advantages

Insert bearings offer five clear benefits:
  1. Quick and simple installation

    Built-in locking mechanisms eliminate the need for complex tools or machining.

  2. Self-aligning capability

    The spherical outer ring compensates for minor shaft misalignment, reducing premature wear.

  3. Effective sealing

    Integrated seals protect against dust, moisture, and contaminants, extending bearing life.

  4. Versatile housing compatibility

    They work with many housing types, including pillow blocks, flanged units, and take-up units.

  5. Low maintenance

    Pre-lubricated designs reduce the need for frequent re-greasing, minimizing downtime.

Our Solutions

At [Your Company Name], we offer a comprehensive range of insert bearings. They come in various sizes, locking styles, and seal configurations.
We can provide the right solution for your needs. Whether you need standard models for light-duty use or corrosion-resistant variants for food processing or outdoor environments, we have you covered. Our team of experts helps you select the perfect bearing for your equipment. We back our products with competitive pricing, reliable delivery, and dedicated customer support.
  • Quick and simple installation: Built-in locking mechanisms eliminate the need for complex tools or machining.
  • Self-aligning capability: The spherical outer ring compensates for minor shaft misalignment, reducing premature wear.
  • Effective sealing: Integrated seals protect against dust, moisture, and contaminants, extending bearing life.
  • Versatile housing compatibility: They work with a variety of housing types, including pillow blocks, flanged units, and take-up units.
  • Low maintenance: Pre-lubricated designs reduce the need for frequent re-greasing, minimizing downtime.
At [Your Company Name], we offer a comprehensive range of insert bearings in various sizes, locking styles, and seal configurations. Whether you need standard models for light-duty applications or corrosion-resistant variants for food processing or outdoor use, we can provide the right solution to meet your specific requirements. Our team of experts is dedicated to helping you select the perfect bearing for your equipment, backed by competitive pricing, reliable delivery, and dedicated customer support.
